Hi folks,

Sorry I have been somewhat inactive lately, lots going on, but the reason I have not been active as much in the Customs section is because of this project which began one night months ago out of sheer bordem and fast became a labour of Love Very Happy
I had a couple of packs of air dry clay at home that I was planning on using for a none Star Wars project. How ever I didn't have the shit I needed and so it was just sat there, one packet was open which isn't good as once you break the seal it's hard to stop it going hard eventually so you have to kind of use it up. Knowing this I had been thinking of something to do and then one night a thought just popped in there.... Luke's House! For fuck sake, it's basically a mud hut, how hard can it be! Turns out, harder than I thought! But what isn't I guess Smile

And so it began! Now because of the air dry clay I had to do it in stages, working it up in layers. Because it needs at least 24 hours often more depending on how thick it is, I could only do so much at a time. This is why it took so long but also allowed me to photograph the entire process from start to finish (at the time of this writing, it's still not 100% finished). Every stage documented, apart from a couple at the end where I got carried away and forgot to take pics Crying or Very sad

Anyway, here it is Smile
The Lar's Homestead

First of all I needed a dome shape roughly the right size... Seriously though, who the fuck has a correct ize dome kicking about, but due to my shocking impatience I improvised Smile This involved some industrial bubble wrap, balled up and taped up and then taped in to shape.
The Lar's Homestead Diorama Homest10

Next, I rolled out a lump of clay and jst kind of put it over the bubble wrap and then rather crudely cut a door way in to it.

The Lar's Homestead Diorama Homest11

The Lar's Homestead Diorama Homest12

Next stage was just a case of adding a new layer to smooth out the bottom edge which kind of looked like a Jellyfish.

The Lar's Homestead Diorama Homest13

The Lar's Homestead Diorama Homest14

Stage 3 was adding the door entrance and the side areas which where initially done by simply rolling out 3 strips of clay and the arching them into shape and adding them to the shell.

The Lar's Homestead Diorama Homest15

The Lar's Homestead Diorama Homest16

The Lar's Homestead Diorama Homest17

The Lar's Homestead Diorama Homest18

The next stage basically involved adding the 'step' around the house, I did this by roling out a strip of clay and adding it.

The Lar's Homestead Diorama Homest19

The Lar's Homestead Diorama Homest20  The Lar's Homestead Diorama Homest21  The Lar's Homestead Diorama Homest22

I then extend the lip of the 'step' to make it larger and more accurate. I also added the back strip.

The Lar's Homestead Diorama Homest23

The Lar's Homestead Diorama Homest24  The Lar's Homestead Diorama Homest25  The Lar's Homestead Diorama Homest26  The Lar's Homestead Diorama Homest27

Next I started to fill the void below the lip.

The Lar's Homestead Diorama Homest28

The Lar's Homestead Diorama Homest29

I decided to work a little more on the entrance. For the interior I used a strip of polystyrene sheet with thin strips of the same sheet glued to it. Once in place I attached it with Milliput and then added more Milliput to the door surround to make it fit better. I would ultimately remove this and replace it with a more accurate interior.
The Lar's Homestead Diorama Homest30

The Lar's Homestead Diorama Homest31

The Lar's Homestead Diorama Homest32

The Lar's Homestead Diorama Homest33

Using the same polystyrene sheet I made some make shift blocks for the two other 'entrance type things' to reduce the amount of clay I would have to use.

The Lar's Homestead Diorama Homest34  The Lar's Homestead Diorama Homest35

After this I just continued to work more on the 'step' around the house, building it up so the right size and working on the back step, I also added little clay bits to the other all dome to make the shape more accurate and smoother although I had by this stage decided to keep the general rough look created by the clay because I thought it added 'character' to the overall project, and it's how I imagine it would look in reality.
The Lar's Homestead Diorama Homest36

The Lar's Homestead Diorama Homest37  The Lar's Homestead Diorama Homest38  The Lar's Homestead Diorama Homest40  The Lar's Homestead Diorama Homest41  The Lar's Homestead Diorama Homest42

The Lar's Homestead Diorama Homest43

The Lar's Homestead Diorama Homest44  The Lar's Homestead Diorama Homest45  The Lar's Homestead Diorama Homest46  The Lar's Homestead Diorama Homest47  The Lar's Homestead Diorama Homest48

Then I little sanded the full surface of the house, not too smooth it, as like I said before I wanted that natural look.

The Lar's Homestead Diorama Homest49

For the next stage I decided that I wanted to add some electronics to the project. Firstly I decided to add the control panel near the door. Now on screen it's not lit up that I can tell but I decided I wanted to light it up, basically abuse some fiber optic stuff I had kicking around from an old model that I never used. It ultimately didn't work perfectly but is o.k. and was very hard to do, real arse a fathy!
I basically used a piece of plastic from the model kit and glued a second piece of plastic to it for detail. I then pierced holes through it with a pin. I then made a basic holder for the LED's using a piece of wood and some plastic tubes (from the model kit) and then added the fiber optic cable (which was a toral fucking arse) Finally I painted the panel front black. (ultimately several of the optics don't illuminate but overall it's o.k.
The Lar's Homestead Diorama Homest51

The Lar's Homestead Diorama Homest50  The Lar's Homestead Diorama Homest52 The Lar's Homestead Diorama Homest53

Next I drilled a hole in the entrance and bored it out to size.

The Lar's Homestead Diorama Homest54

The Lar's Homestead Diorama Homest55  The Lar's Homestead Diorama Homest56

The Lar's Homestead Diorama Homest57

Next up.... the new entrance! I'd noticed that my original was actually wrong from the screen version so I decided that it had to go, so I made a new one.
The new one features the two lines that run around the inside. I used the same principle as before and then added it to the entrance and used Milliput to edge it off and make a better surround for the control panel.
The Lar's Homestead Diorama Homest58

Compared to the original

The Lar's Homestead Diorama Homest59

The Lar's Homestead Diorama Homest60

The Lar's Homestead Diorama Homest61

At this stage I was happy with the overall shape after adding bits here and there so was now going to concentrate on the final look. First I wanted to add a bit more texture to the surface so I painted wood glue on o the surface in places and then covered it with dry sand from the beach.

The Lar's Homestead Diorama Homest10

The Lar's Homestead Diorama Homest11  The Lar's Homestead Diorama Homest12  The Lar's Homestead Diorama Homest13  The Lar's Homestead Diorama Homest14

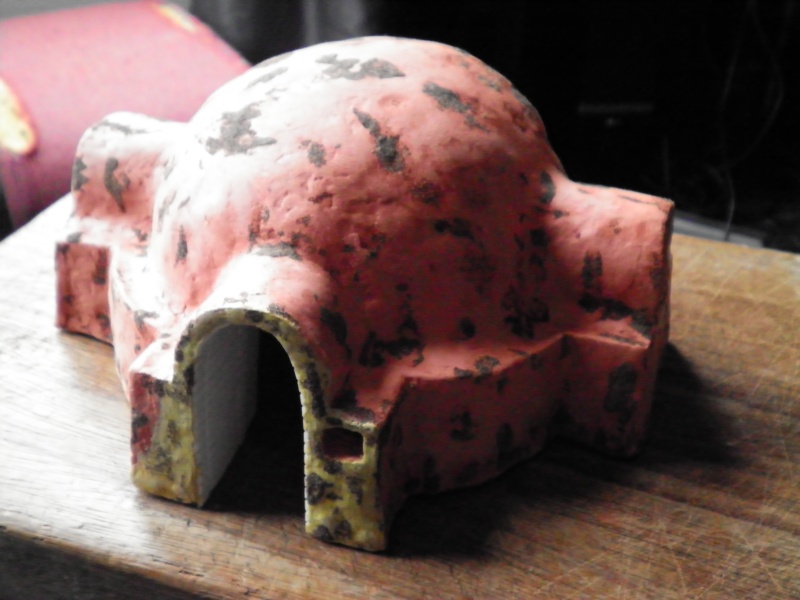

Once this had dried I sanded it down leaving only the finer remnants leaving it looking more subtle.

The Lar's Homestead Diorama Homest15

The Lar's Homestead Diorama Homest16  The Lar's Homestead Diorama Homest17

Next up was paint, I used a spray can for this, Desert Sand, the same as the one I used for my Luke Bespin Customs. I used the entire can, about 4 layers in total.

The Lar's Homestead Diorama Homest18

The Lar's Homestead Diorama Homest19  The Lar's Homestead Diorama Homest20

After this, I used a sponge to apply patchy paint tp the overall surfacem I used white and two different brown and then finally re covered parts with the original Desert Sand paint using the same sponge technique.

The Lar's Homestead Diorama Homest21

The Lar's Homestead Diorama Homest22  The Lar's Homestead Diorama Homest23  The Lar's Homestead Diorama Homest24

Next up.... electronics! I wanted the interior to be illumated as can be seen in the film so I added several LED's to the interior to illumniate from beind the door. The wiring is up there with the worst  :cool laugh:
I added an in/off switch in the door frame and also added a connector so that I could disconnect the battery pack. I would later remove this in order to use it to connect the house to the base. I used Milliput to hold everything in place.
The Lar's Homestead Diorama Homest25

The Lar's Homestead Diorama Homest26

The Lar's Homestead Diorama Homest27

The Lar's Homestead Diorama Homest28

The later alteration I made was to remove the connector and use it to connect the power supply to the base. I also added more Milliput to keep the battery pack secure and a strip of bendable polystyrene sheet to hold it in place but also allow it to be removed.
I also added more clay to the interior to cover the wires when viewed from the door entrance.
The Lar's Homestead Diorama Homest29

The Lar's Homestead Diorama Homest30

And here is the lights turned on Very Happy

The Lar's Homestead Diorama Homest31

The Lar's Homestead Diorama Homest32

The Lar's Homestead Diorama Homest33


Last edited by General Kahn on Tue Dec 09, 2014 4:36 pm; edited 3 times in total
Back to top Go down
View user profile
General Kahn
Force Addict
Force Addict
General Kahn

Posts : 3099
Join date : 2011-04-10
Age : 39
Location : England

The Lar's Homestead Diorama Empty
PostSubject: Re: The Lar's Homestead Diorama   The Lar's Homestead Diorama I_icon_minitimeSun Dec 07, 2014 5:32 pm

The Lars Homestead - Base

The base for the homestead is designed to fit into a display cabinet I have that will one day hopefully ... display my stuff!
I was lucky really because I didn't di any measurements for the house and it just squeezes on the base.... JUST!

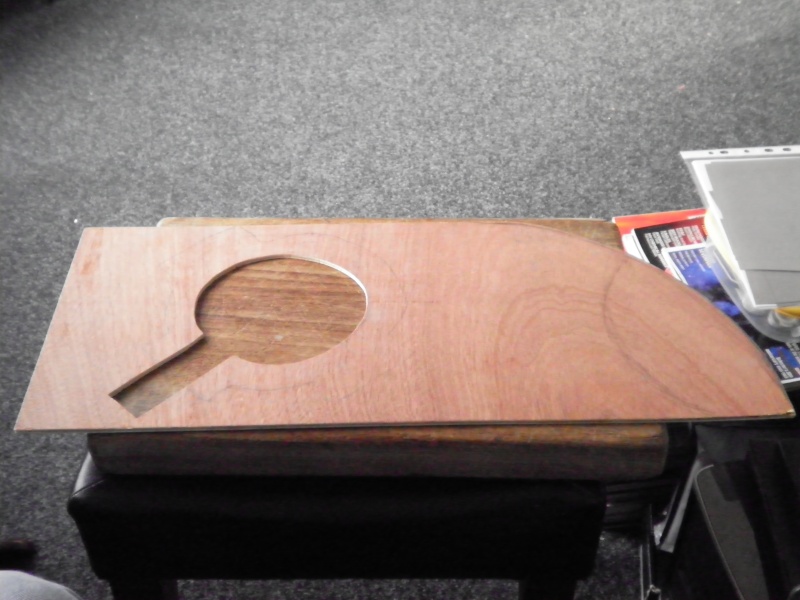

The base will be in the end of the cabinet so I cut a piece of wood and rounded it off so there wasn't a sraight corner. EVentually an illuminated sunset display will be behind this Very Happy

Once the base shape was cut I positioned the house and then cut out the interior. I then used some wood to raise the base to A, allow for the steps and B, allow for the display cabinets door frame.
The Lar's Homestead Diorama Homest34

The Lar's Homestead Diorama Homest35

The Lar's Homestead Diorama Homest36

The Lar's Homestead Diorama Homest37

The Lar's Homestead Diorama Homest39

The Lar's Homestead Diorama Homest38

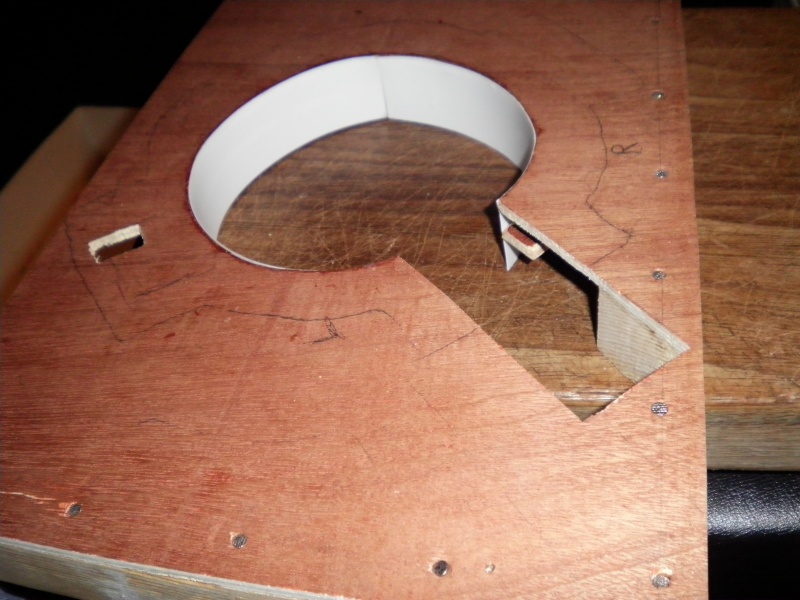

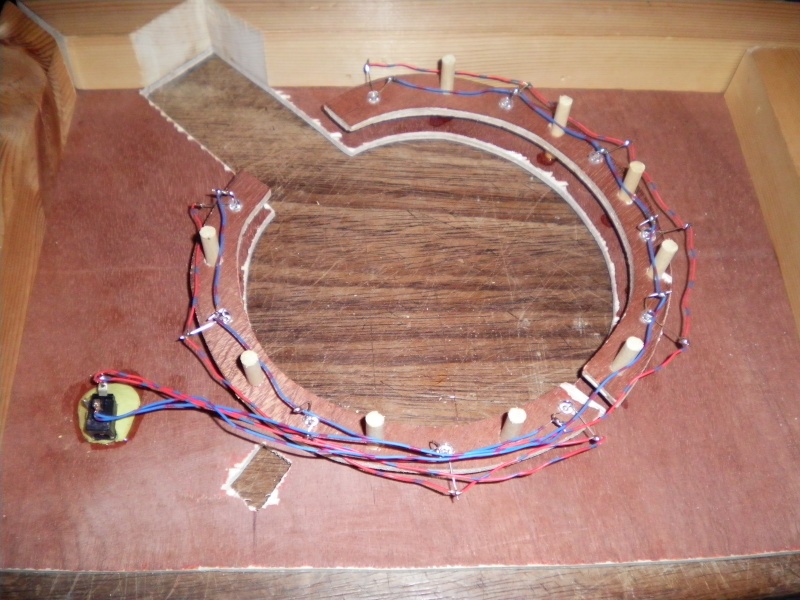

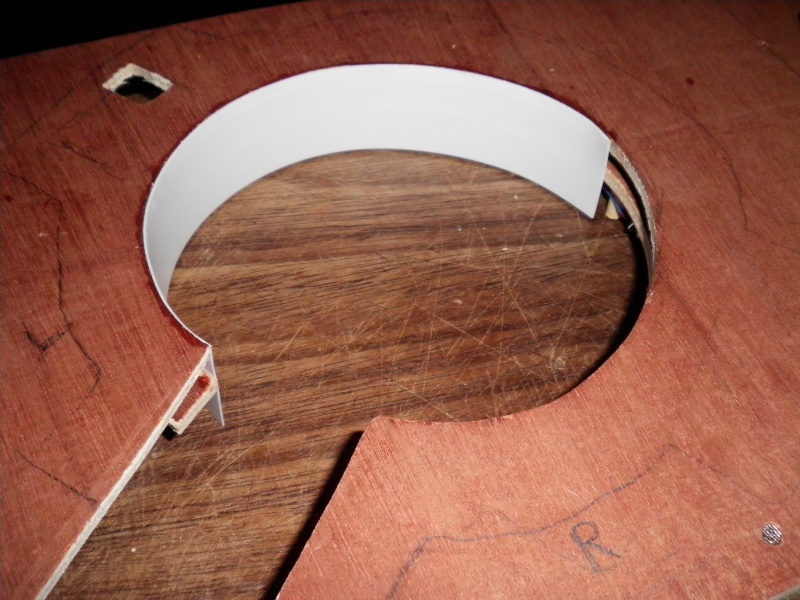

Next was the lights to further illuminate the interior. For this I cut to crescent shaped pieces of wood and placed LED's around them and then fixed them in position with dowel. I drilled a hole for the connecting lead from the house and fitted the connector to the underside of the base and then connected the wiring, again in true cowboy style!! :cool laugh:  I then used two strips of Polystyrene sheet to block out the wires from the inside, this is slightly opaque so light shines through.
After this U used two more polystyrene strips for the edge of the stair well and made the steps using clay.
The Lar's Homestead Diorama Homest40

The Lar's Homestead Diorama Homest41

The Lar's Homestead Diorama Homest42

The Lar's Homestead Diorama Homest43

The Lar's Homestead Diorama Homest44

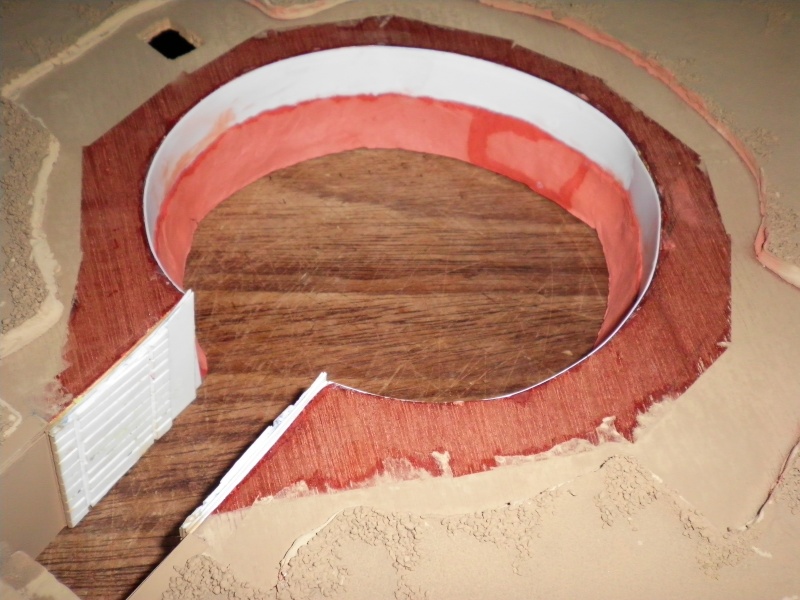

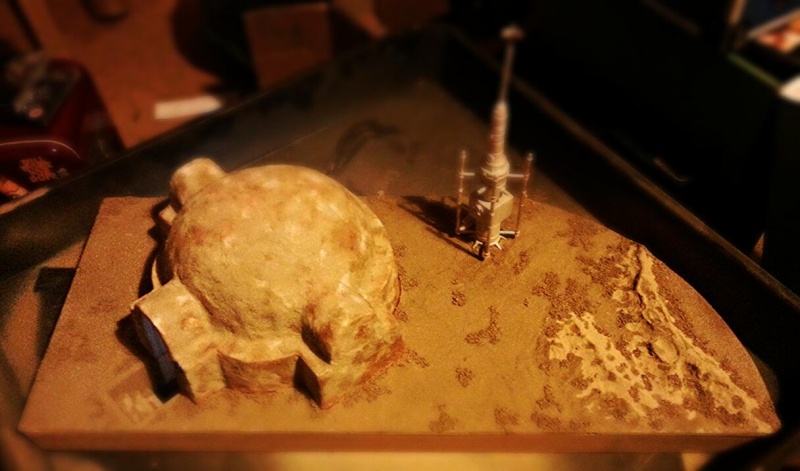

Unfortunately, the next few stages I kind of missed as I got carried away and forgot to take photographs Crying or Very sad  In all, I used polystyrene again to edge the stair well on top and then lined the interior bottom wall with clay. I also extended the interior design of the entrance onto the lower section. I then used clay and smeared it over the top of the whole base to give a slightly uneven surface and to create a lip where the homestead would sit. I also used a 30th Anniversary Collection Moisture Vapourator and made an inprint for it to sit in and finally I created the rocky ridge where Luke stands using clay. Once this was done I used glue to cover the entire surface with sand, leaving only the rocks exposed. Then I used some shop bought larger size gravel and glued this in various places to give it a more 'deserty look' Finally I sprayed the entire base with Desert Tan.
This worked perfectly and had an unexpected side effect, when it dried it left two very different colours, light on the rock (clay) and the correct dark colour on the sand which basically saved me a job and although I did originally intend to add more colour I was happy with the result so I left it as it is.
The Lar's Homestead Diorama Homest45

The Lar's Homestead Diorama Homest46

The Lar's Homestead Diorama Homest47

The Lar's Homestead Diorama Homest48

The Lar's Homestead Diorama Homest49

The Lar's Homestead Diorama Homest50

The Lar's Homestead Diorama Homest51


Last edited by General Kahn on Thu Dec 11, 2014 2:33 pm; edited 2 times in total
